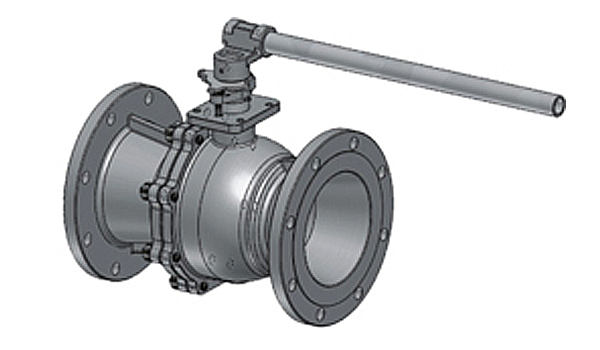

Ball VALVE | 2-PC Flanged Ball Valve |
YVT-B2R15F
- Features
- Specification
- BLOW-OUT PROOF STEM
- FIRE SAFE DESIGN AS OPTION
- ANTI-STATIC DESIGN IS STANDARD
- ISO 5211 MOUNTING PAD
- TEMPERATURE RANGE: -60'TO 450-F
- FACE TO FACE: DIN3202 F4/Fl 0

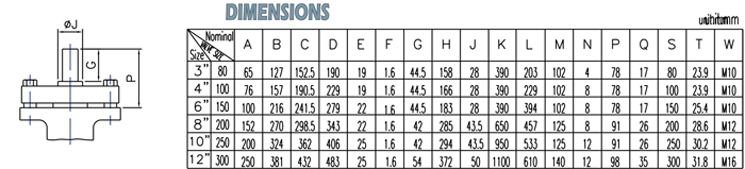

- FLANGE DIMENSIONS: DIN2633/DIN2635
- PRESSURE RATING: PN16/PN40
